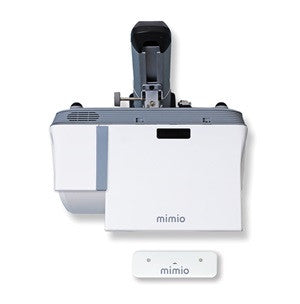

P12 Bulb Touch Boxlight UST Interactive Projector

by Mimio
Price $2,099.00

With MimioProjector™Touch projector, you can connect with your computer and use the conventional dry erase boards you already have.

Touch-enabled collaboration with the computers and whiteboards you already own.
  • An affordable way to bring multi-touch, interactive collaborative learning into classrooms that don’t have projectors.
  • Create an interactive touch area as large as 100 in. diagonal. Allows up to 10 single-point touches or 5 dual-points touches with gestures.
  • A full-featured solution that includes award-winning MimioStudio™ classroom software.

The MimioProjector gives you a chance to bring interactive teaching into your classrooms without having to buy both an interactive whiteboard (MimioTeach or MimioBoard) AND a projector.
Creating an interactive classroom with the computers and whiteboards you already have is easy:
  • Just mount, plug in your computer and your lessons can be brought to life with graphics and images on your conventional dry erase board.
  • Enhance collaborative learning with dual-pen operation—allowing two students to interact simultaneously with the same projected lesson.
  • Reduce shadows on the whiteboard with this ultra-short-throw projector.
  • Award-winning MimioStudio™ classroom software is included to give you a full-featured solution.
  • Using other MimioClassroom™ products is easy since they're all completely integrated with each other.


  • A true HDMI experience, which means stunning images and audio – no need for separate speakers.
  • Using pens or finger touch, multiple students can simultaneously interact with the same projected image, enhancing collaborative learning.
  • Ultra-short-throw design reduces shadows on the whiteboard.
  • Laser Curtain Module powers directly from the projector – no extra wires or complicated installation.
  • Easy alignment – takes less than a minute with the Visible Light Alignment feature.
  • Bulb can be replaced without dismounting the MimioProjector device. Up to 5000 hours between bulb replacements.
    • Supports all common video formats, including VGA, HDMI, S-Video, and Composite.
    • High image quality up to WXGA.
    • Ultra-short-throw design reduces shadows on the whiteboard.
    • Technology supports 3D displays.
    • Optional Wall Mount enables MimioProjector interactive projector to be attached to a wall.
    • Includes Kensington lock for additional security.
    • Built-in stereo speakers provide a more lifelike experience without additional components.
    • Built-in line input for PC output and Mic input for use with a microphone.


    Minimum Software Requirements
    MimioStudio 10 and higher on a Windows, Mac, or Linux OS.
    Dual-pen operation is compatible with Windows 7 and above. Single-pen operation is available for Mac, Linux, Windows XP and Vista.
    For specific system requirements,
    please visit the MimioStudio product page.

    Projector Specifications

    • Native Aspect Ratio: 16:10. Also supports 4:3 and 16:9 aspect ratios.
    • Native Resolution: 1280 x 800 (WXGA)
    • Image Size (projected distance): WXGA 16:10: 70” – 100”
    • Keystone Correction: Vertical: ±15 degrees (manual)
    • Contrast Ratio: Up to 3000:1
    • Typical 2000 : 1 (Native) (White @100% lamp power/Black @100% lamp power)
    • Color Reproduction: 1.07 billion colors (R/G/B 10 bit)
    • Color temperature: Adjustable from 6500° K - 8300° K
    • Color uniformity: |△x| <0.03, |△y|<0.03

    Projection Lens

    • F 2.6 fixed zoom
    • Focal Length: 3.71 mm
    • Throw Ratio Range: WXGA 0.35
    • Zoom Ratio: Digital zoom 1.0 – 2.0X
    • Focus type: Manual


    • Projection System: Digital Light Processing (DLP), utilizing a six-segment color wheel
    • Projection Method: Front / Wall Mount
    • Brightness: 2800 lumens
    • Lamp: 240 Watt OSRAM E20.8 Lamp (replaceable without dismounting projector)
    • Lamp life: Normal mode: 3500 hours minimum. Eco mode: 5000 hours minimum. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Lamp brightness decreases over time.
    • Input Signal: NTSC/PAL/SECAM video capability with S-video / composite / YPbPr Component 1080p/UXGA/WXGA/XGA/SVGA/MAC compatibility
    • Video Inputs: 1 HDMI, 2 VGA, 1 S-video, 1 composite analog
    • Closed captioning: on TI DDP4421 spec, CC1/CC2/CC3/CC4 supported

    3D capabilities

    • DLP Link 3D and HDMI 1.4a 3D supported


    • Two 3.5-mm stereo line level, 2 stereo RCA jack line level, one 3.5-mm audio out, one 3.5-mm microphone
    • Input sensitivity: 1 kHz, 0.5Vrms sine wave
    • Speaker: 8 watts stereo (16 watts total output)


    • Operating Temperature: 0-40° C (32-104° F)
    • Altitude: For 0 - 762 M, 0 - 40° C (0 - 2500 ft, 32 - 104° F); for 762 - 1,524 M, 0 - 35° C (2500 - 5000 ft., 32- 95° F); for 1,524 - 3,048 M, 0 - 30° C (5000 - 10000 ft, 32 - 86° F)
    • Humidity: Operating and Storage: 80% RH (Max.), Non-condensing
    • Fan Noise: Full mode: 35±2dB(A), w/o filter ECO mode: 30±2dB(A), w/o filter


    • Power Supply Voltage: Universal AC 100 – 240 V~50-60 Hz with PFC input
    • Power Consumption: Normal mode: 300 W+/-10%@110VAC
    • ECO mode: 240 W+/- 10% @110VAC
    • Standby< 0.5W


    • Kensington lock »36 Kg

    Interactivity (optional feature)

    • Interactive Technology: 940 nm Infrared digital pen
    • Detection Frame Rate: 60 fields-per-second providing 16.6 ms response time
    • Resolution: 2560 x 1920 (interpolated); 640 x 480 (Native)
    • Interactive Area: 75” to 115” diagonal
    • Multi-pen: one or two pens provided with Interactive version of MimioProjector, depending on configuration. Non-interactive versions of MimioProjector do not include a pen. Pen uses alkaline AAA battery.
    • Interactive Connectivity: mini-USB cable required
    • Interactive Device: Digital pen
    • Pen attributes: 15.2 cm L x 1.5 cm W (6.0 in. L x 0.6 in. W), 34 g (1.2 oz) (without battery)
    • Dimensions and Weight: 357 mm W x 367 mm D x 135 mm H (14 in. W x 14.4 in. D x 5.3 in. H) (excluding feet)
    • 357 mm W x 367 mm D x 231 mm H (14 in. W x 14.4 in. D x 9.0 in. H) (including reflection mirror)
    • Weight: 7.5 kg (16.5 lb)


    • Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
